Inflatable Rainbow Arches: The Curved Span Explained

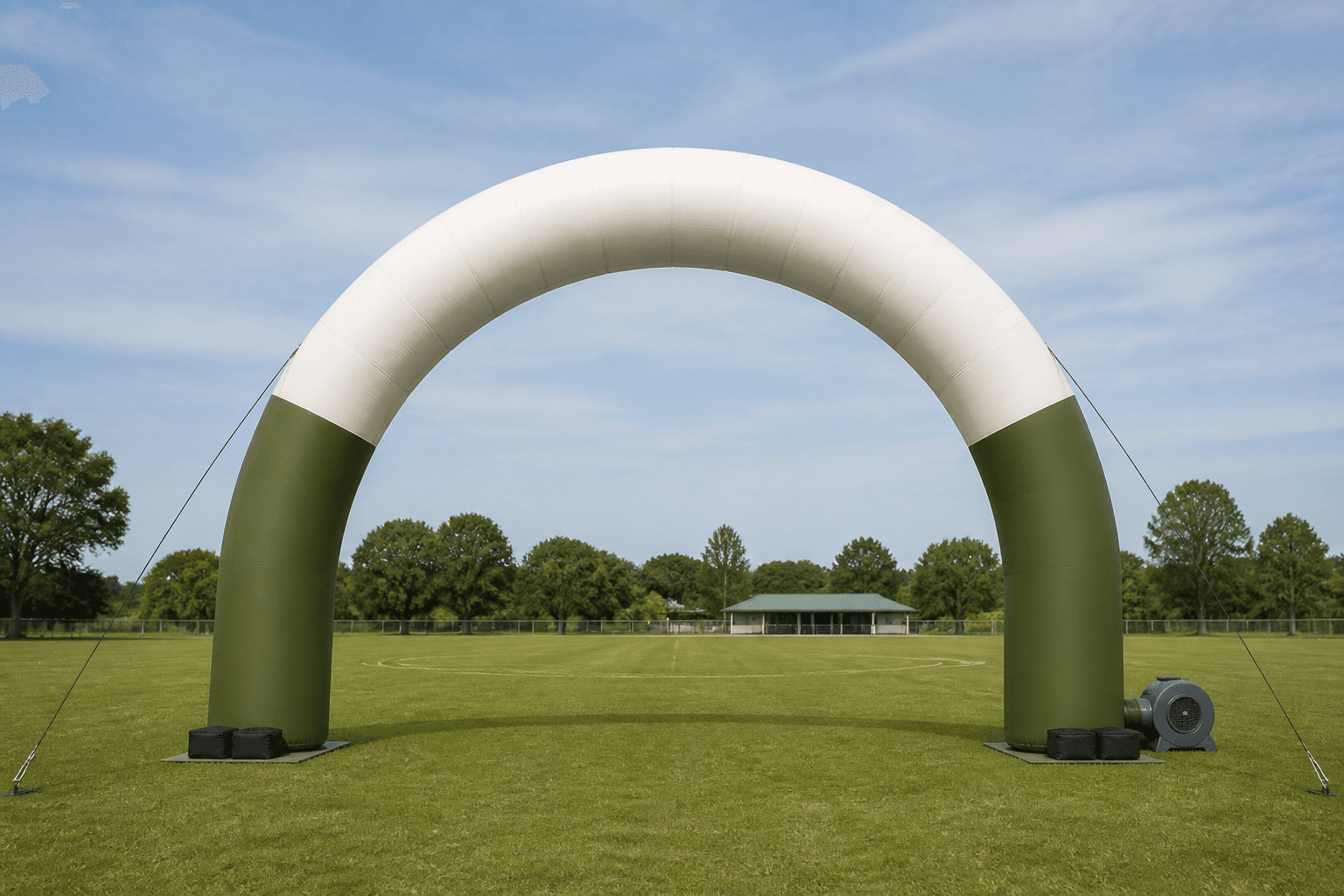

A rainbow arch is the continuous curved profile most people picture when they hear "inflatable arch": two legs rising into an unbroken semicircular span. It is the cheapest shape to build well and the least forgiving one to lay out type on.
On a rainbow profile there is no flat face. The surface turns away from the viewer continuously from the leg to the crown, so a word set horizontally across the top of the span reads shorter and thicker than it does on screen, and a logo placed dead centre is the part of the design seen at the most acute angle.
There are two normal answers. Either the layout is designed for the curve — large marks, generous letter spacing, nothing that depends on a straight baseline — or the piece is built with a straight-sided profile instead, where a flat panel carries the type. Say which matters more, the silhouette or the typography, and the mockup will follow it.
The curve is continuous, so artwork runs around the span rather than sitting on a flat face.
Type set across the crown compresses as the surface turns away from the viewer.
The profile is efficient to pack, which keeps freight volume down on larger spans.
Specification
What a quotation for this format is built from.
Sizes buyers usually order
An arch is sized by the opening it has to span. As planning references from delivered project types: grand openings and retail forecourts are commonly about 3–8 m wide × 3–5 m high, race and finish-line gantries clear opening 4–8 m wide × 3–5 m high, festival gateways 4–10 m wide × 3–6 m high, school and campus events 3–6 m wide × 3–4 m high, and team tunnels and sponsor gates 4–8 m wide × 3–5 m high.
Send the clear opening you need — the width and height that have to stay unobstructed — rather than an overall size. The legs sit outside that opening, so an arch built to clear six metres is wider than six metres on the ground, and that difference is what decides whether a vehicle, a timing gantry or a field of runners actually fits through.
The span, the legs and the ground it stands on
Three dimensions are quoted, not one: the clear opening, the overall footprint including the legs, and the height at the crown. A site that is measured only at the opening can turn out to have no room for the legs, which is the most common reason an arch has to be rebuilt at a smaller size.
The ground matters as much as the measurement. Grass, sand, tarmac, paving and an indoor floor each take a different fixing method, and the installer needs to know which one before the piece is packed, because the fixing hardware ships with it.
Material and air system
Double-layer PVC is the general construction. 0.4 mm PVC is used on large-format projects, and 0.5 / 0.6 / 0.7 mm PVC mesh where the structure carries load, spans further or faces sustained exposure.
The air system is sized to the piece: the 650 W electric pump moves 1,600–2,000 L/min at 2.0 psi and suits smaller spheres, compact displays and short-duration indoor installations; the 1600 W electric pump moves 4,800–5,200 L/min at 4.5 psi for large-format structures, arches and continuously inflated outdoor displays. Both run on 110–240 V, 50–60 Hz, and the destination plug type is confirmed on the order.
Print area and sponsor panels
Send print-ready vector artwork with colour references, and say which marks are sponsor-owned and which are yours. On an arch the crown carries the main lockup and the legs carry the secondary panels, so the split is agreed before printing rather than argued about afterwards.
A curved crown turns away from the viewer, which compresses type across the top of the span. Where a layout depends on type reading square, the usual answers are a straight-sided profile or a flat printed panel set into the span, and the mockup shows which one you are approving.
Lead time, quantity and freight
MOQ is 1 piece for most custom projects, so a single piece can be approved before a repeat order. Pattern and print setup are paid once per design, so a second unit costs less per piece than the first.
Bulk production typically takes 3–8 days for simple items, 7–15 days for standard custom work and 15–25 days for complex or large pieces, counted from final design approval. Freight comes on top: express or air usually 4–15 working days, and sea, rail or truck usually 20–45 days, after dispatch and subject to route and customs
All of these sit under inflatable arches, where the shared specifications and the full buyer checklist live.
Buyer FAQ
Questions that come up before quotation.
Quote Form
Request a Quote for an Inflatable Rainbow Arch
Send the clear opening width and height, the ground surface it stands on, print-ready artwork, the quantity, the destination and the date it has to be on site.
Start with four essentials: product type, rough size, quantity, and one way to contact you.
Country, timing, artwork, and technical details are optional at this stage. We will request anything else needed for a usable factory quote.
