Inflatable Race Arch Site Approval: Timing, Power and RFQ Handover

This guide is for race organisers, sports-marketing agencies, event production companies and distributors in the United States, United Kingdom and Australia who buy a custom inflatable race arch for a start line, finish line or sponsor gateway. It deals with the handover between product quotation and site acceptance: who supplies what information, what drawing is approved, and which questions remain for the operator. It does not supply an engineered design or a permit.

Start at the custom inflatable arches product page to compare available formats, then check the sports-event application and the narrower marathon finish-line planning page. Those pages describe format and use case; the decision here is whether a specific proposed arch, at a particular site, is sufficiently defined to order and later install.

One buyer may approve the brand design while a different contractor is responsible for timing equipment, temporary power or on-site safety. State those parties by name in the RFQ. A supplier may be able to build to an approved drawing, but cannot approve a public-road closure or certify unknown anchoring conditions from a marketing image.

Request a plan showing the approach direction, route centreline, start or finish marking, the entire chute, crowd barriers, spectator areas, photographer position and any emergency or service lane. Show fixed obstructions, tree branches, overhead services, roadway crown or slope and the surface at both arch-leg positions. Mark the actual allowed zone rather than assuming that everything behind the start line can be occupied by an arch.

The site drawing needs its own revision number and event date. If the plan is still conceptual, label the measurements as estimates. The arch maker needs the location and outer envelope, while the timing contractor needs access to their equipment. The organiser or venue must resolve any conflict before production approval. For cross-border orders, work from measurements on a drawing rather than converting between feet and metres informally in email.

Do not claim that a common catalogue width is suitable just because another race used it. The arch shape comparison explains why round and angled legs affect clearance differently; this article concentrates on the approval process once a site has been chosen.

A quotation based on an overall outside width does not establish the available passage through the gateway. Leg diameter, crown depth, an angled support, tie points and ballast each consume physical space. In a round arch, the height available near each side is also different from the height near the centre.

Ask the venue to identify any vehicle that must pass the installation, including emergency or event-service access where applicable. Make the actual required vehicle and pedestrian movements visible on the plan; do not state a universal emergency clearance or assume that spectator routes and vehicle routes may be combined. The approval authority and event safety team determine the final access requirements.

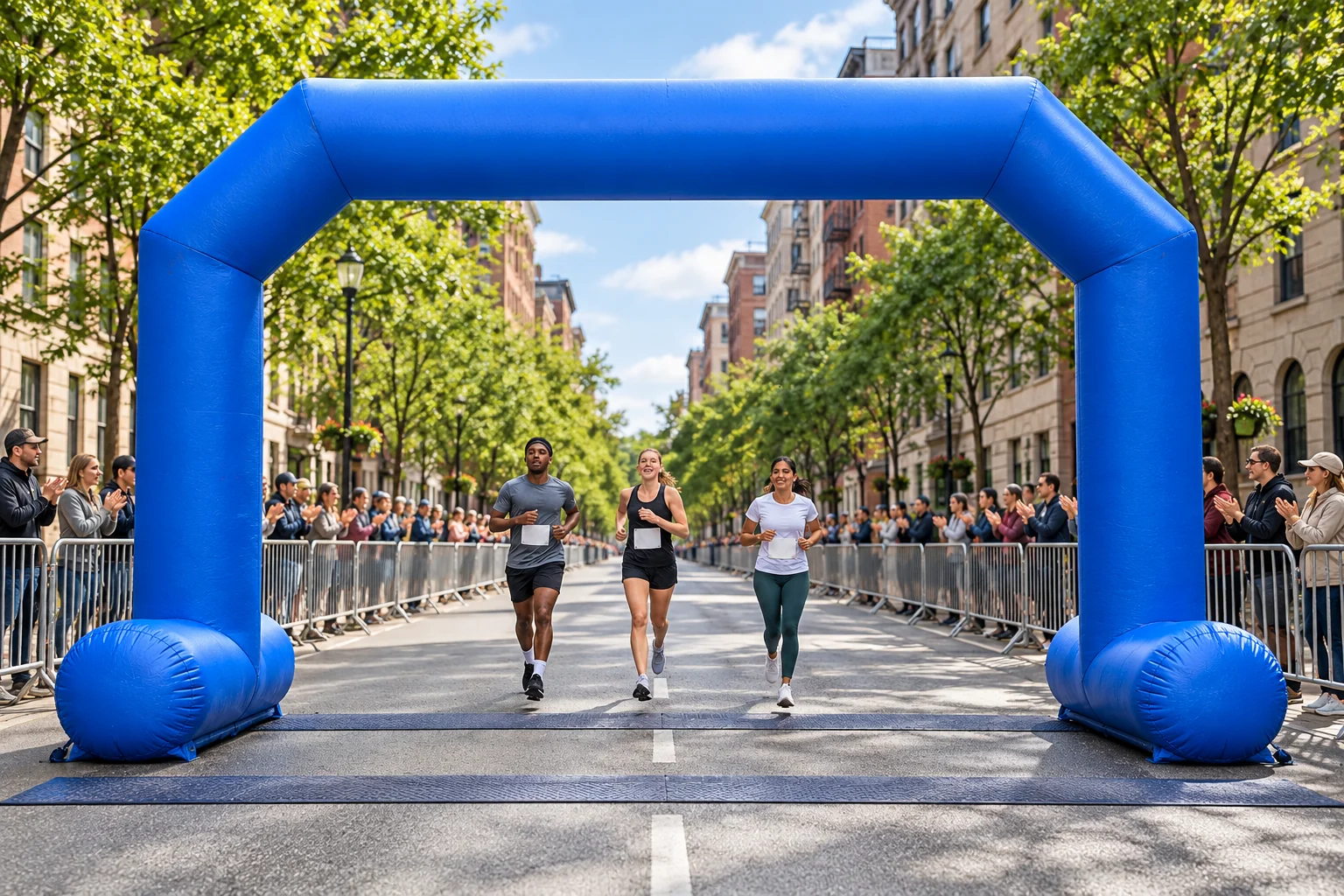

Race timing mats, antennas, finish cameras, clocks and optional overhead gantries are usually specified by a specialist timing contractor. Request that contractor's equipment footprint, positions, cable paths, accessibility requirements and set-up sequence before fixing the arch-leg locations. Some timing systems need a particular unobstructed field or maintenance access; that condition must come from the equipment provider rather than from an arch illustration.

Photographers may want the finish arch on the camera axis, while the timing lead wants certain marks unobstructed. Put both positions on the same drawing and agree the priority before placing sponsor artwork. If the arch is only a visual gateway, say so; do not imply that it replaces the official timing system or structural gantry.

A useful change-control rule: any shift in leg locations, finish-line marking, equipment layout or cable route triggers a new site-plan review. A revised brand logo alone normally does not require new geometry, but the revised print should still have an artwork owner and deadline.

The supplier's concept drawing can identify intended connection points and proposed accessories. It cannot determine that a fixed ballast weight will be safe at an unknown wind exposure, on an unknown surface, with unknown public access. Tell the supplier whether the site is tarmac, concrete, grass or another surface; whether penetration is permitted; and whether suitable, approved fixed anchors exist.

The competent installer and any relevant engineer or venue authority should review the proposed restraint arrangement, site and operating conditions before installation. Do not attach an arch to crowd barriers, street furniture, vehicles, timing equipment or buildings merely because they appear close enough. Permission and the load capacity of any intended anchor must be established separately.

Ask who provides ballast or anchors, straps, connection hardware, inspection instructions and the installation drawing. The quotation should identify any excluded site equipment explicitly. A photo of D-rings or ropes is not evidence of a tested attachment capacity. The intended outdoor conditions and operational restrictions remain subject to a project-specific review.

The event's responsible operator needs a weather monitoring and decision process for installation, operation, suspension and removal. The supplier should provide any applicable design-specific operating instructions and limitations; those do not remove the organiser's responsibility to review actual local conditions and make a competent on-site decision.

Do not insert an arbitrary wind-speed limit into a buying guide, quotation or page FAQ. A number taken from a play-inflatable manual, a different manufacturer's product or an unrelated structure may be unsuitable for an advertising arch. Require the right documentation for the actual design and venue, and record who can stop operations and order a safe closure.

In the United Kingdom, the HSE guidance on event site design recommends a referenced site plan identifying structures and access; the applicability of permits and technical requirements remains event-specific. The US and Australian buyers should ask their local organiser, venue, authority and competent professionals for their applicable rules rather than assuming a single national arch certificate.

If the design uses a continuous-air blower, confirm power availability, destination voltage and frequency, compatible plug or connector, equipment location and operator access. The supplier must quote the actual blower model and supply scope. A claim that one blower will suit all markets is not a substitute for checking its rating label and site electrical arrangements.

Locate distribution equipment outside the race path and spectator flow wherever practicable. The event's competent electrical contractor should decide the cable routing, protection, power source and applicable inspection arrangements. Never assume the supplier's extension cable is suitable for public-event use or that the buyer may run it across a live chute.

Discuss what happens if power is interrupted: who notices, who isolates the area and who has authority to stop the activity. Do not promise continued shape retention from a continuous-air construction after loss of power. The action plan should reflect the approved model and its actual operating instructions.

Prepare a front elevation and, where useful, rear and side elevations with every sponsor placed on a named panel. State which artworks are permanent, which change by event, and who has the right to approve each mark. Curved and inflated surfaces do not reproduce a flat two-dimensional mockup exactly. Check logo proportions and reading distance from the actual approach.

If a race series changes sponsors, discuss removable graphics before the pattern is approved. A replaceable panel is a separate proposed construction feature, not automatically available on all arches. Use the permanent-versus-replaceable sponsor panel guide to make that decision.

Keep brand sign-off distinct from the site sign-off. The marketing team may approve the words and colours but has not thereby approved the ballast arrangement, electrical installation or emergency route.

Request an itemised shipment list: inflatable structure, matched air equipment if included, hoses or connectors where applicable, proposed restraint accessories, repair materials if agreed, storage bag, packing pieces and documented instructions. Ask for packed dimensions and gross weights once the configuration is agreed. A crate or bag shown in a generic image is not a committed packing specification.

List the delivery location and required arrival date separately from the event date. State whether the goods are delivered to a freight forwarder, event depot or individual race site. For US, UK and Australian import projects, the commercial terms, customs responsibilities and any site receiving constraints should be recorded on the quotation rather than guessed.

Put the build sequence next to the road-closure window: receiving and unpacking, site check, installation, inspection, timing set-up, race operation and removal. Allocate actual responsibilities and require a contingency if access changes. The product vendor can supply information, but it cannot guarantee a venue's permits, road closure or the contractor's mobilisation.

A table is useful only when someone actually owns each row. Record the approver's role, reference drawing, approval date and outstanding conditions. Label 'pending' instead of turning an assumption into a green check mark. Changes that affect opening, restraint, equipment or positioning should reopen the relevant approvals and may change price or delivery feasibility.

Where a competent engineer or event authority needs calculations or certificates, request the precise project-specific documents. Do not accept an unrelated conformity logo, an unverified factory biography or an AI-generated image as a substitute for the required evidence.

Subject: Custom inflatable race finish arch — drawing and site review. Product: custom branded inflatable arch; planned event and venue: [name/city/country]; use: [start/finish/entrance]; required clear opening: [width × height with units]; maximum outer envelope: [width × height × depth with units]; ground surface and permitted anchor arrangements: [details or pending]; timing equipment: [supplier and layout reference]; power availability: [rating/location or pending]; artwork: [version and sponsor owner]; required quantity and destinations: [units per location]; arrival date and event date: [both]; requesting organisation and contact: [details].

Request separate confirmation of feasible geometry, construction and air-system options, approved accessories, packaging dimensions and weight when known, document/inspection scope, price basis, freight responsibility and drawing approval stages. Attach the site plan and labelled photos, even if artwork is provisional. Submit the complete project through InflatCraft's quote request or email sales@inflatcraft.com.

If some details are not available yet, send the RFQ with those cells marked 'pending'. That is preferable to inventing a wind rating, approval, power certification, delivery commitment or price. For broader country coordination, review US market planning, UK market planning or Australia market planning, then confirm all destination-specific requirements with the appropriate parties.
