Application Guide
Custom Inflatable Arches for Marathon Finish Lines
The finish arch is the photograph every runner takes home and the fixed point the timing crew, medics and broadcast work around. It goes up on a closed road in the early hours, has to leave room for the timing system and emergency access underneath it, and must come down on schedule once the road reopens.

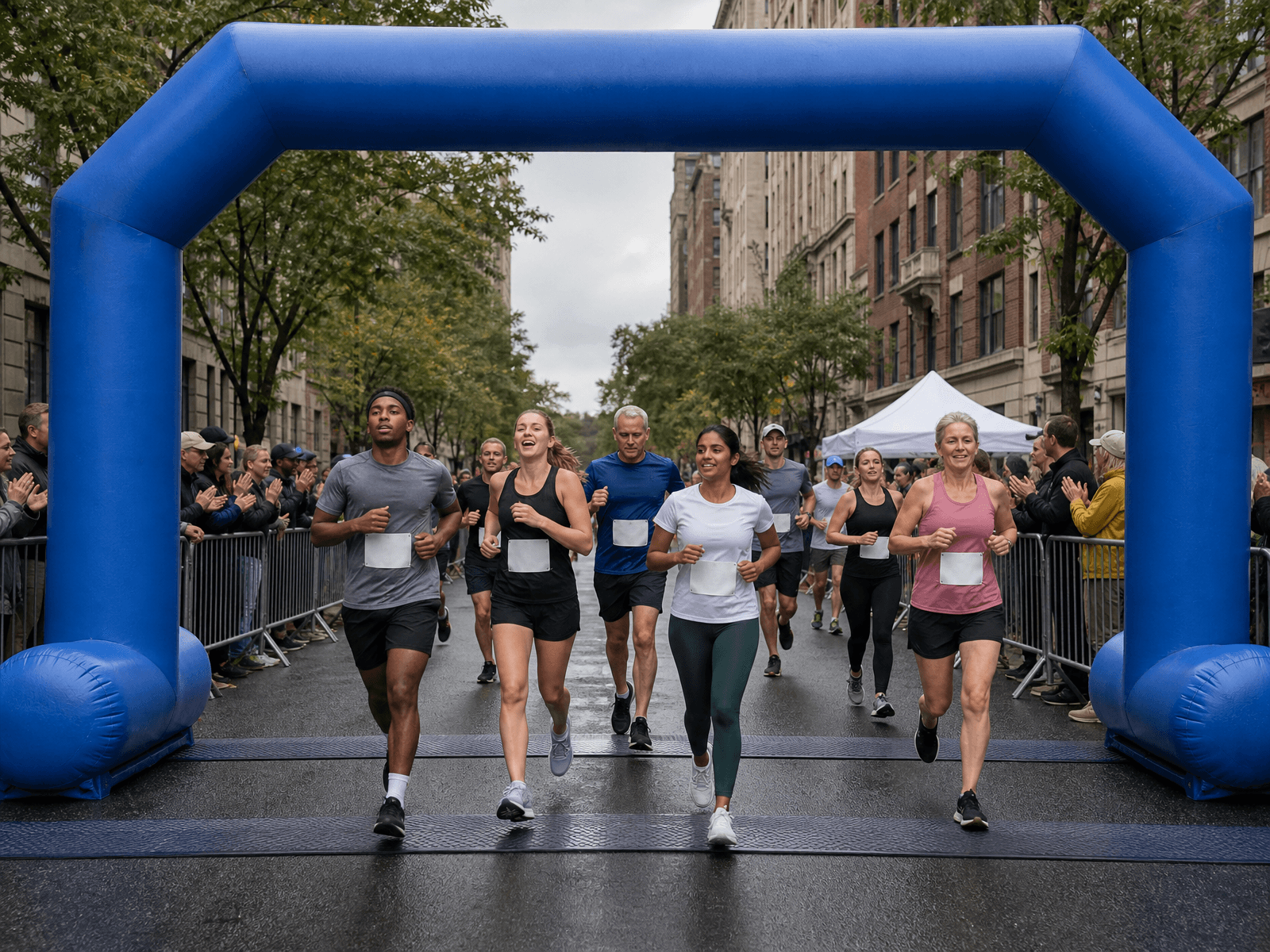

AI-generated design reference. Timing equipment and an approved race setup are not established by this image.
Products and typical sizes
What is used for marathon finish lines, and at what size.
| Product type | Role in this setting | Typical size range |
|---|---|---|
| Custom Inflatable arches | The finish structure itself. Clear opening, sponsor panels and leg position all follow from the finish chute layout, not from a catalogue size. | Clear opening 4–8 m wide × 3–5 m high |
| Custom Inflatable logo signs | Sponsor markers along the final stretch and at the finish festival, where an arch would be one gateway too many. | 1–3 m high |
| Custom shaped advertising inflatables | A sponsor object or event mascot for the finish area photo zone, kept away from the chute. | 2–5 m high |
Typical sizes and setup times are planning references only. Final dimensions, crew size, anchoring, electrical supply and weather limits are confirmed for each design and venue.
Installation
Installation window and crew.
Crew needed
3–4 people
Finish structures are normally installed during the road closure before the start, often in the dark, by an event crew that is also laying timing mats, barriers and gantries. The arch has to fit that sequence: in position before the timing system is set, fixed before barriers close the area.
Strike is the part organisers underestimate. After the last finisher the road reopens on a permit schedule, and deflating, folding and clearing a large arch has to be on the crew plan with real time allocated.
Fixing and wind
Fixing requirements specific to marathon finish lines.
Closed public roads cannot take stakes. Arch legs are ballasted, usually with water or sand weights, and the ballast position has to leave the timing mat and clock placement untouched.
Tying off to crowd barriers is only acceptable if the barrier supplier confirms the barriers are meant to take that load; by default they are not.
The clear height under the arch has to pass the tallest vehicle that will use the route during the race — lead vehicles, motorbikes carrying camera crews, and ambulances.
Blower and cable belong on the side of the route away from the finish chute, so no cable crosses the lane runners and medics use.
Wind and weather: No fixed wind speed is published. Do not operate in strong winds, storms or severe weather; a site-specific anchoring plan and operator supervision are required. Confirm vehicle clearance, runner flow, guy-rope zones and the organiser's site rules.
Common failure points
How these projects usually go wrong.
The clear opening is specified as the arch's overall width. Once the leg diameter is taken off, the lane is too narrow for the timing mats and the medical access lane side by side.
The arch arrives with the blower inlet on the wrong side for this course, so the only route for the cable is across the finish chute.
Sponsor logos sit only at the top centre. Finish photographs are taken from the runner's height looking forward, the top of the arch is out of frame, and the logos the sponsor paid for never appear.
The ballast plan was made at a training day on grass. On race day the arch stands on tarmac with no stake points and nothing on site to weigh it down.
No strike plan. The road is due to reopen, the arch is still inflated, and the crew is also clearing barriers and timing equipment.
Procurement checklist
Send these with the RFQ.
- Road width at the finish line, and the full finish chute layout
- Timing system footprint: mats, clock and any overhead gantry
- Tallest vehicle that must pass under the arch during the race
- Road surface at the leg positions
- Power source and its position: mains, generator or distribution board
- Sponsor logo hierarchy, and where the official finish photographer stands
- Road closure window for installation and for strike
- Number of events per season the arch will be used at
- Destination country and delivery date
Markets
Destination planning for this application.
FAQ
Questions about inflatables for marathon finish lines.
From the finish chute, not a standard size. Start with road width, the space the timing mats and clock need, a clear medical access lane, and the tallest vehicle that has to pass underneath, then add the leg width on each side.
With ballast at the legs, because stakes cannot go into the road surface. Water or sand weights are common. Plan their position so the timing mats and clock keep the positions the timing crew needs.
Where the finish photographs will actually capture them. Photos are usually taken at runner height, so logos on the upper legs and lower crossbar tend to appear more reliably than a single panel at the very top.
Yes, if the clear opening suits the narrowest finish in the series and sponsor panels are designed to be changed. Confirm the reuse plan when ordering so the artwork and attachment method allow it.
Finish road width, timing system layout, tallest vehicle, surface, power source, sponsor artwork and hierarchy, number of events, destination and delivery date.
